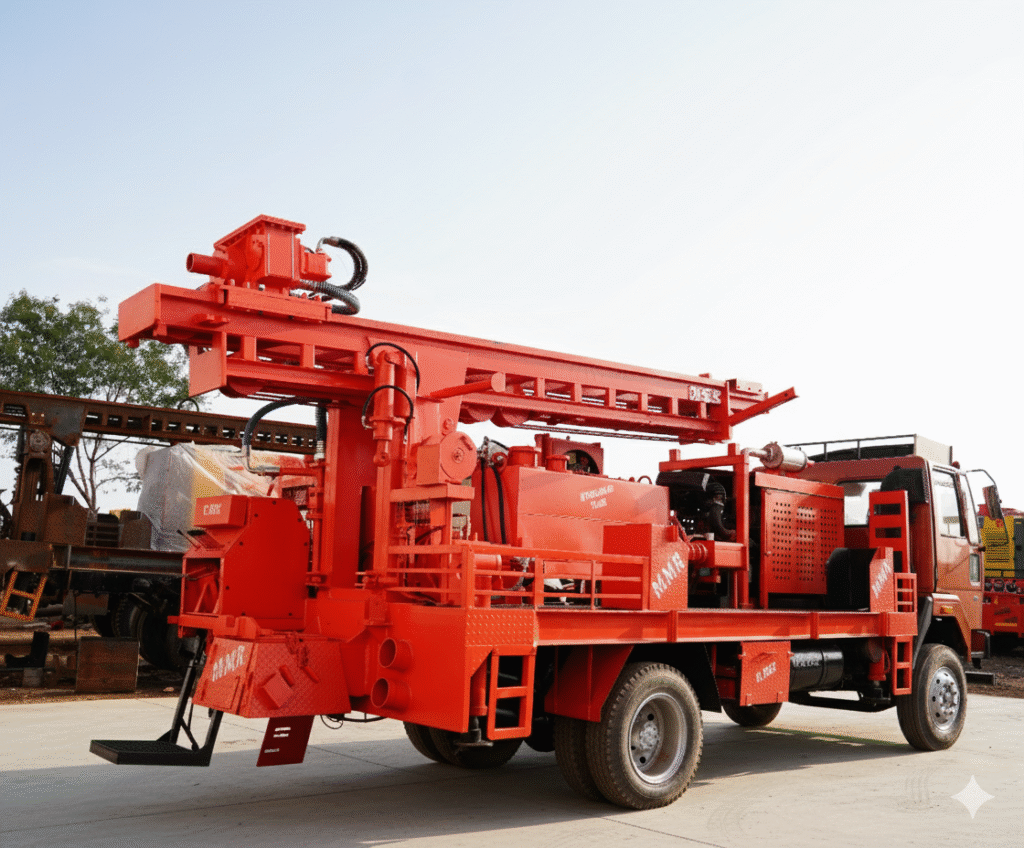

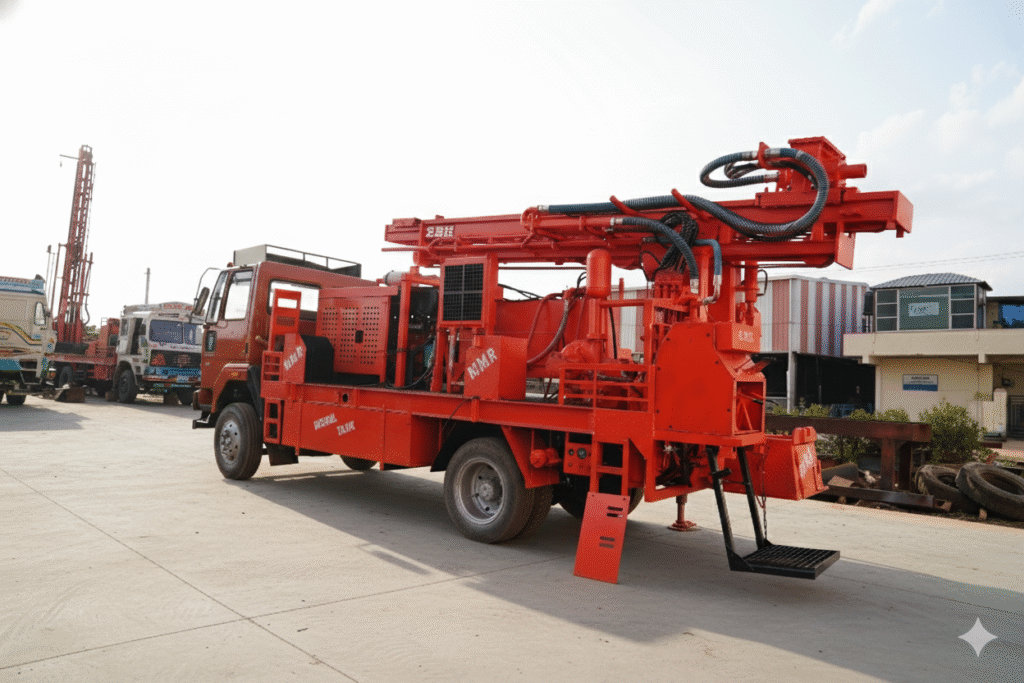

| MMR DTH-1000 Specifications | |
|---|---|
| Application | Water well |
| Drilling Method | DTH & Rotary |
| Hole Diameter Range | 165 – 203 mm (6½” – 8”) |
| Maximum Depth | 150 – 300 m (500–1000 ft) @ 165 mm (6½”) |
| Rod Handling Capacity | 3 m (10 ft) |
| Rotary Head Torque | 2600 Nm (260 kgm) |
| Rotary Head Speed | 0–100 rpm |
| Pull Up Force | 8500 kgf |
| Suitable Compressor |
|
| Optional Attachments |
|
