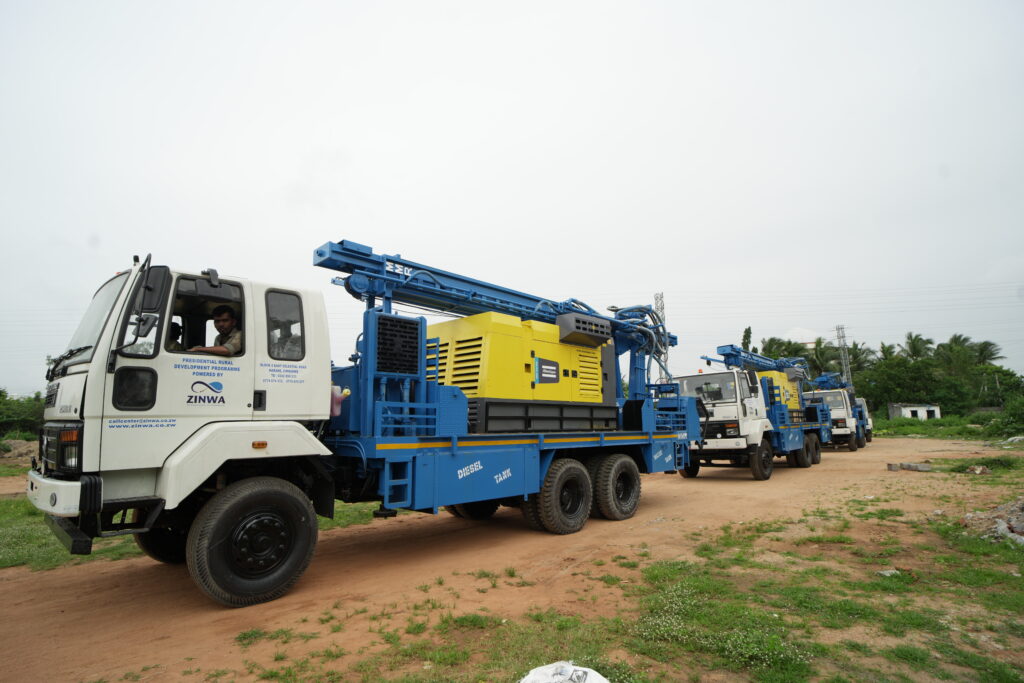

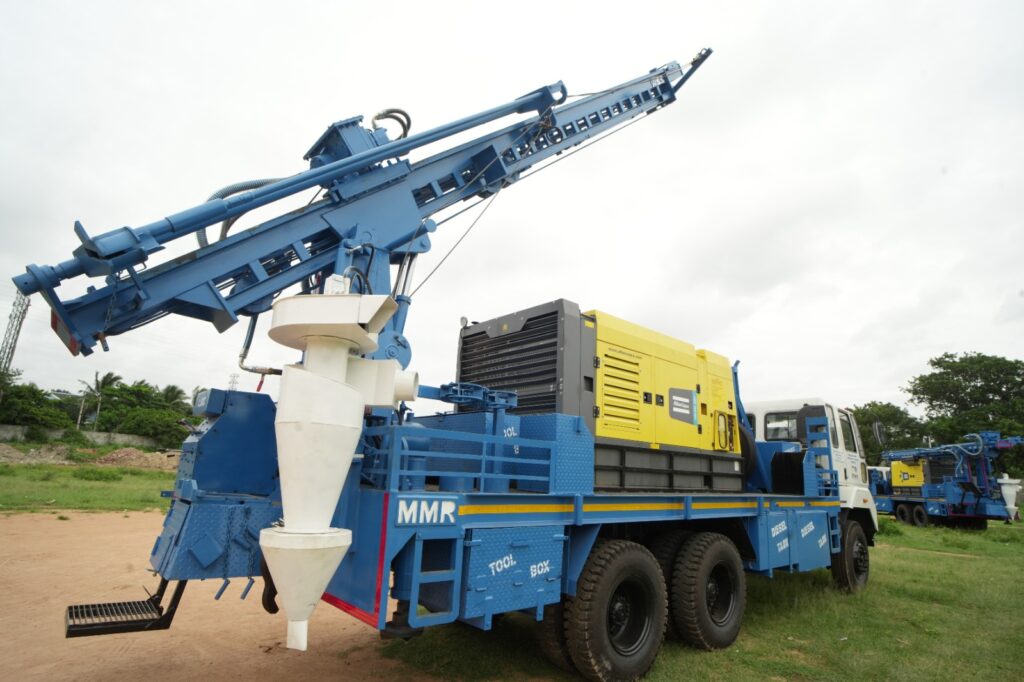

| MMR DTH-1000 EXPORT Specifications | |
|---|---|
| Application | Water well |
| Drilling Method | DTH & Rotary |
| Hole Diameter Range | 165 – 306 mm (6½” – 12”) |
| Maximum Depth | 300 m (1000 ft) @ 165 mm |
| Drill Rod Size | 114 mm (4½”) |
| Rotary Head Torque | 3245 Nm (2380 lb-ft) |
| Rotary Head Speed | 100 rpm |
| Pull Up Force | 8500 kgf |
| Pull Down Force | 5000 kgf |
| Air Compressor | 750 cfm – 25 psi |
| Mounting Option | AL2518 - BS IV Truck |
| Standard Features | Manual Single Rod Changer, Water Injection Pump |
| Additional Features | Hydraulic Dust Collector |
