Mounted Rig Specifications

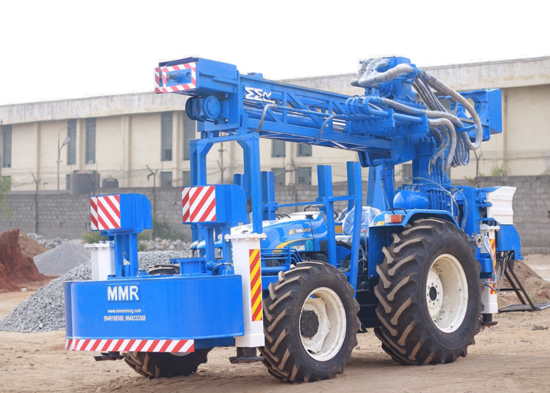

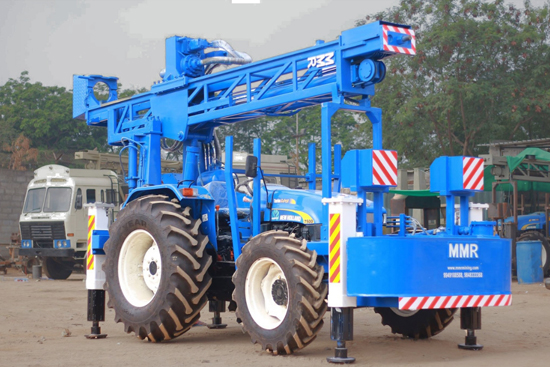

TRACTOR MOUNTED RIG Specification
ApplicationConstruction, Solar, Exploration, Water Well, Piling
Drilling MethodDTH & Rotary
Hole Diameter Range
  • DTH: 165 – 203 mm (6½” – 8”)
  • Piling: 1200 mm
Maximum DepthDTH: 200 m (660 ft) @ 165mm (6½”)
Rod Handling Capacity
  • 3 m (10 ft)
  • 4.5 m (15 ft)
Rotary Head
  • Torque: 2600 Nm (260 kgm)
  • Speed: 0–100 rpm
Pull Up Force8500 kgf
Pull Down Force5000 kgf
Suitable Compressor600 – 300 psi
Compressor Size1100 cfm – 350 psi
Optional Attachments
  • Centrifugal Mud Pump
  • Top Winch
  • Manual Single Rod Changer
  • Water Injection Pump
